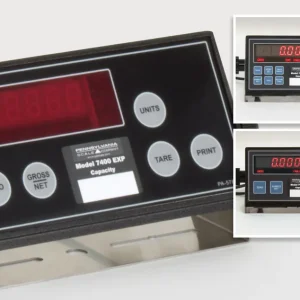

Name: 7400, 7500 & 7600 EXP Scale Indicators - Made In USA Scales
Price: 517.50 USD
Availability: InStock

Features

High intensity RED LED display, 0.56″
Die cast aluminum compact enclosure
SS U-bracket for desk or wall mount
Common software features from PLUS+ Series
USB for both power and data (USB 1.0 or higher)
Programmable RS-232 standard
Standard AC adaptor, 8′ cable
Power Options: – Portability with USB power pack – Open source power: vehicle, solar, laptop, desktop computers – 24-bit delta sigma load cell A-to-D converter
Powers up to (8) 350 ohm load cells or (10) 1,000 ohm load cells
16 million internal counts for high resolution counting
Fully programmable in (2) units of measure – default lb/kg or user specified PRIMARY and SECONDARY weighing units
Audit Trail feature + Password protection for metrological settings
Filter options and averaging + simple field calibration
NTEP to 10,000 divisions
Free factory matching to any Pennsylvania Scale base or platform
(7400EXP) 10 point linearization
(7500EXP) Simplified operation in (2) user programmable weight units + COUNT feature
(7600EXP) Expanded features, full keyboard entry of Tare Weight, APW, Sample Quantity (plus 4 pre-set sample sizes) and operational options
ONE YEAR LIMITED WARRANTY

Specifications

Applications

Truck and heavy capacity weighing
Platform scales
Package manifest shipping systems (standard default settings) UPS Worldship™, FedEX, DHL, and other output emulation for plug-and-play integration
Field testing, mobile weighing, data collection – weigh or count
Rental scales for short term use
Medical
Airline Baggage
Permanent, portable, or temporary installations
Custom OEM products

Standard Features — All Models

Die cast enclosure w/SS U-bracket for wall or shelf
USB power — HD cabling and AC adaptor
0.56” red high intensity display w/annunciators
Technician friendly — Runs same software as our PLUS+ Series
16 million internal counts for high precision counting
USB data or programmable output via RS-232
PLUS+ Series components in new efficient, compact size
10-point linearization (7400 EXP)
Access code protects metrological settings + Audit trail feature
Keyboard calibration

Specifications:

24 bit delta sigma load cell A/D converter
Sensitivity: 0.1 uV/graduation
Excitation: 5 VDC, 120 mA max
Up to (8) 350 ohm load cells or (10) @ 1000 ohms
High intensity 0.56″ red LED display (6) digits w/annunciators
Weight in 2 user-selected units of measure + COUNT feature
Quick disconnect for standard CPC mating connector OR hard wire to terminal strip via Heyco fitting
Factory matching to any Pennsylvania platform
Power: 5 V, 1 A via USB input — cable and AC power
8′ HD USB cable and 100–240 V switching adaptor included
- OPTION USB vehicle 12 VDC vehicle cell phone power source
- OPTION USB laptop or portable device
- OPTION USB power bank for portability
- OPTION USB power bank w/solar charging

Enclosure: Black powder coat aluminum die casting

With U-bracket and knobs installed: 9 x 4 x 3.25” inches (23 x 11 x 7 cm)
Enclosure only, set up as turret mount (no wall bracket or knobs): 7.3 x 3.9 x 3.25” inches (18.5 x 10 x 7 cm)

Warranty

The parts and components of these Pennsylvania Scale Company products are warranted for ONE YEAR from the date of retail delivery against defects and materials and workmanship, subject to the terms and conditions of our standard Warranty.

Models

7400 EXP: Weight-only indicator ideal for high capacity applications in lbs/kgs.
7500 EXP: Super high precision with 16 million internal counts for parts counting
- (2) Programmable units of measure + count mode
- Single or 1-button sampling (select)
- 4 fixed sample sizes or easily customized
- Auto Sample Update™ feature for accuracy enhancement
7600 EXP: Adds keyboard for Tare or APW entry
- Displays Average piece weight or weight/thousand pieces
- %-Error or %-Accuracy sampling guide (setting)
- Single or 2-step sampling
- Key in any sample quantity plus (4) preset sample sizes
