4300 Series SS Checkweigher Scale
$1,311.00 – $1,682.00
Precise engineering with versatile configurations and easy-to-use features — plus advanced control and data collection capabilities. Built in the USA.
Simple operation with washdown protection. Advanced data collection capabilities.
The 4300 SS Checkweigher SS Series excels in the most demanding environments, with a rugged industrial design, superior washdown protection, and simple operation — with components that are Built in the USA. The entire system acts as a defense against the damaging effects of shock, abuse, and other environmental factors — ensuring long-term performance and delivering long-term value. The responsive keypad and basic controls simplify training and reduces operator error — while supporting weighing accuracy, consistency, and speed. Checkweighing features support quality standards and improve bottom-line performance. Set target weights and the on-panel lights will indicate OVER, UNDER and ACCEPT to ensure accurate and consistent weighments.
WHY INVEST IN A DORAN 4300
Washdown safe
IP69K classification with 304 stainless steel and an innovative gasket enclosure for heavy duty washdown protection.
Mobility
The optional rechargeable internal battery provides up to 60 hours of continuous use — ideal for production that requires a mobile bench scale.
No experience needed
With five basic controls, the 4300 SS is easy to operate. Checkweigh to zero or actual weight with 3- or 5-zone checkweighing operations.
Configurable for different applications
Choose from two different brackets and three column heights to position the digital readout at the best level — and choose from 34 different options to customize the 4300 SS for production requirements.
Reliable support
On-site support, installation and training provided by Doran specialists to ensure peak performance.
Quality and Scalibility
Our exclusive Quad-Spring construction, available on DXL Series, delivers 1000% overload protection. Shock overload is transferred to the frame of the scale base protecting the sensitive load cell.
Versatility and exceptional build quality.
This versatile system is available in multiple configurations and Doran offers a large selection of Doran power options, communications and networking equipment, and other accessories. Every component meets Doran’s quality standards for manufacturing and assembly. The heavy-duty touch panel resists moisture and puncture damage, and is easy to operate, even when wearing gloves. The large, bright red LED display is easy to read in any lighting conditions. The optional internal battery makes the scale ideal for projects that require mobility or where power is limited. Add Doran Excelerator software, to collect data for transfer to a Microsoft Excel spreadsheet via a local RS232, Bluetooth or USB port, or sent across a wired or wireless Ethernet network.
| (Capacity/Platter Size2) | 4302/10, 4305/10, 4310/10, 4325/10, 4350/10, 4350/12, 43100/12, 4350/15, 43100/15 |
|---|
Product Brochure
Specifications
| Warranty: | Two Years |
| Power: | 100 – 240VAC 50/60Hz |
| Serial Interface: | Two Bi-directional RS-232 ports |
| Resolution Range: | 200d to 50,000d |
| Number of Load Cells: | Up to 8, 350 Ohm |
| Serial Interface: | Two Bi-directional RS-232 ports |
| Controls: | Zero, Over, Under, Units, and Print |
| Digital I/O: | Two remote switch inputs |
| Temperature Range: | 14° to 140° F (-10° to 40° C) |
| Analog Sensitivity: | 0.16 μV/e min., 0.5 μV/e typical |
| System Linearity: | 0.01% full scale |
| Analog Signal Range: | -0.5 mV/V to 5mV/V 4 and 6 wire input |
| Excitation Voltage: | 5 VDC |
| Construction: | 304 Stainless Steel |
| Dimensions: | Indicator 6″ H x 10″ W x 3″ D |
| Base sizes: | 8″ x 8″, 10″ x 10″, 12″ x 12″, 15″ x 15″, 18″ x 18″, 18″ x 24″, 24″ x 24″ |
| Weight capacity: | 2 to 100,000 lb |
| Brackets: | U-bracket or Attachment Bracket |
| Columns: | 14″ Atlas column 30″ Atlas column and PFS Series SS Portable Floor Scale available |
Video
Related products
7600-HR Counting and Bench Scale
Original price was: $1,225.00.$1,102.50Current price is: $1,102.50.
Select options
This product has multiple variants. The options may be chosen on the product page

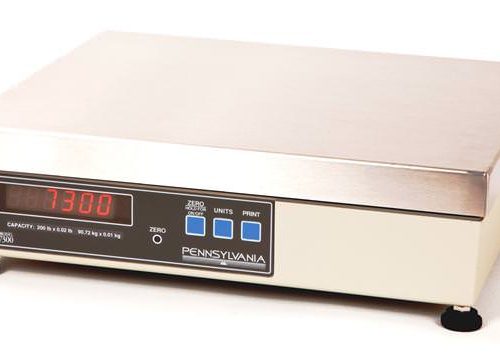

7300-HR Heavy Duty Bench Scale
